Applications

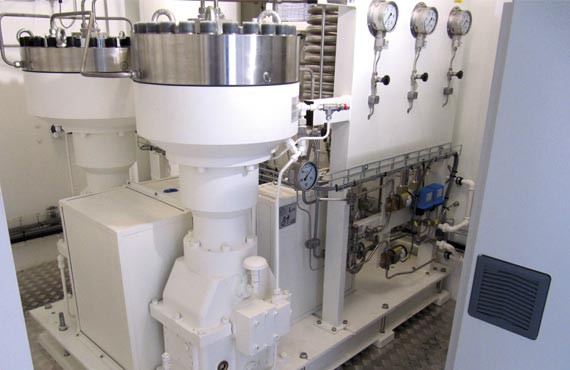

Oxygen filling

Diaphragm compressors for oxygen filling .Vertical design - water cooled. Pressure 5 bar (a), output pressure 151 bar (a) at a flow rate of 12 Nm3/h.

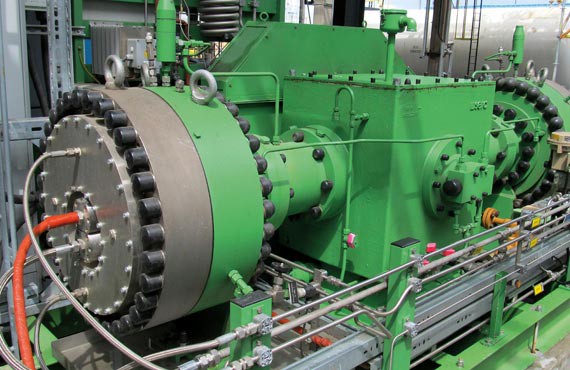

Production of buthyl

Metal diaphragm compressor for the production of butyl - horizontal construction. Pressure 20 bar (a), output pressure 85 bar (a) at a flow rate of 112 Nm3/h

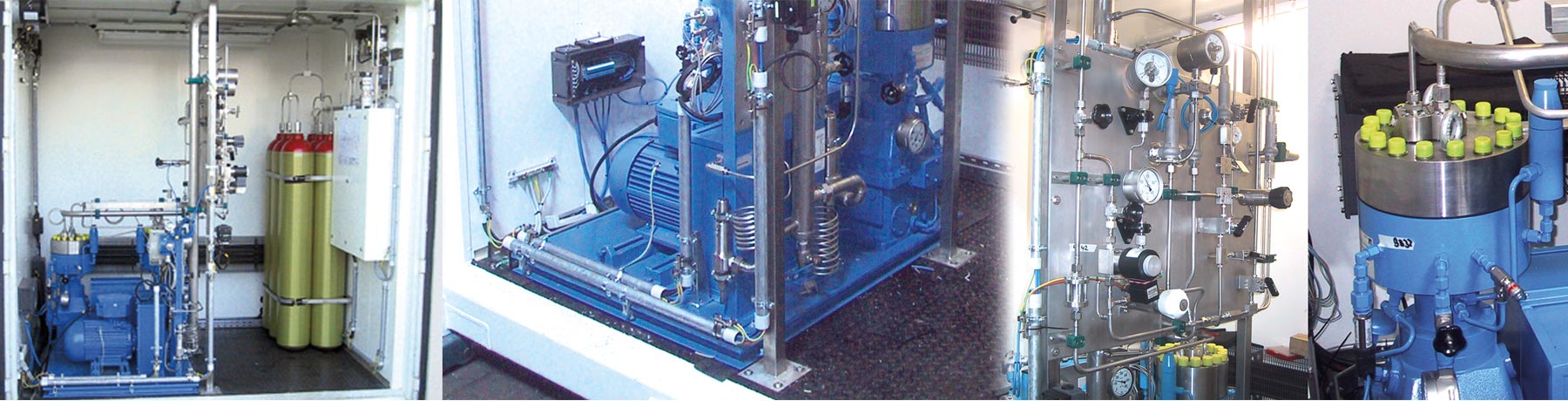

Mobile hydrogen filling stations

Metal diaphragm compressor installed in a mobile filling station, vertical design. Pressure 30 bar (a), final pressure 450 bar at a flow rate of 1 Nm3/h.

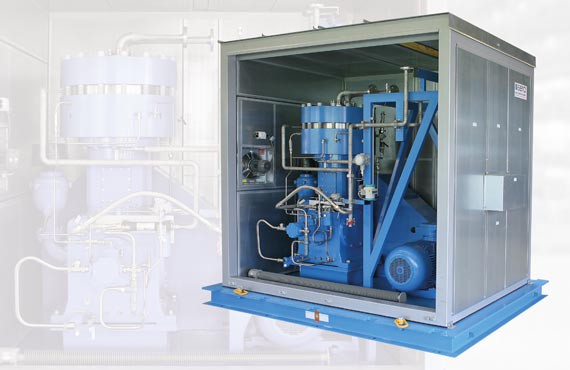

Natural gas recirculation

Metal diaphragm compressor - vertical, 1-stage and water cooled. Pressure 10 bar (g), output pressure 55 bar (g) at a flow rate of 200 Nm3/h.

Recovery of oxygen from partially emptied gas bottles

Mobile diaphragm compresso, vertical, 2-stage and air cooled. Pressure 10 bar (a), output pressure 200 bar (a) at a flow rate of 2 Nm3/h.

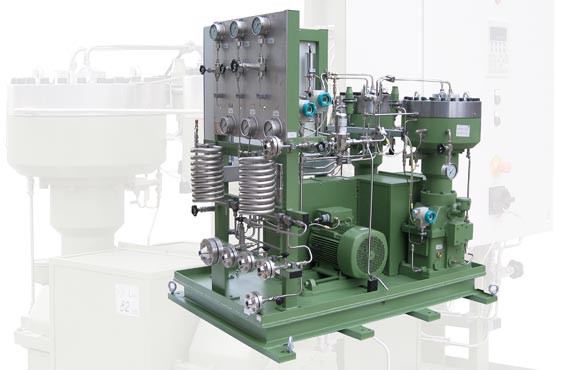

Filling of noble gas

Metal diaphragm compressor, vertical, 3-stage and water cooled design. Inlet pressure is 1.02 bar (a), ourput pressure is 180 bar (a) at a flow rate of 22 Nm3/h.

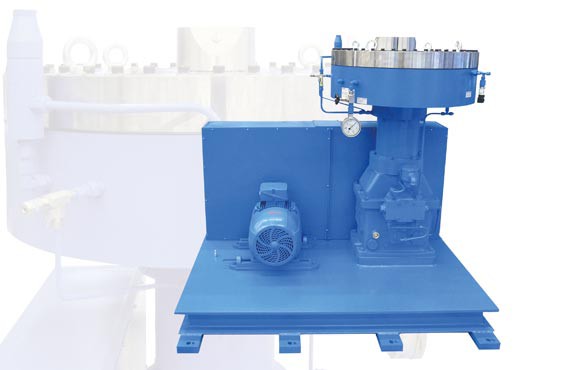

Recovery of contaminated gas

Metal diaphragm compressors, vertical design,1-stage and water cooled. Pressure 2 bar (g), output pressure 6 bar (g) at a flow rate 30 Nm3/h

Syngas

Metal diaphragm compressor, design is vertical, 2-stage and water cooled. Inlet pressure 16 bar (g), output pressure 250 bar (g) at a flow rate of 15 Nm3/h.

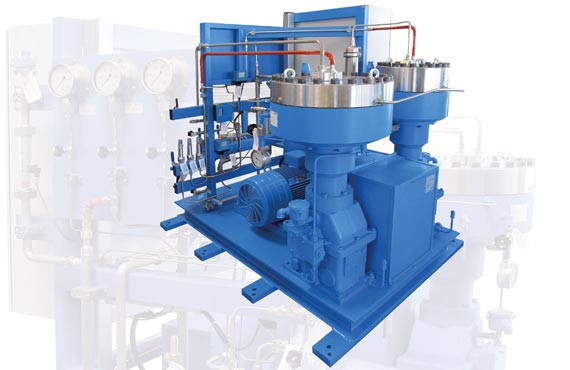

Storage of oxygen

Metal diaphragm compressor - 2 stages and water cooled design. Pressure 10 bar (a), output pressure is 200 bar (a) at a flow rate at 34 Nm3/h.

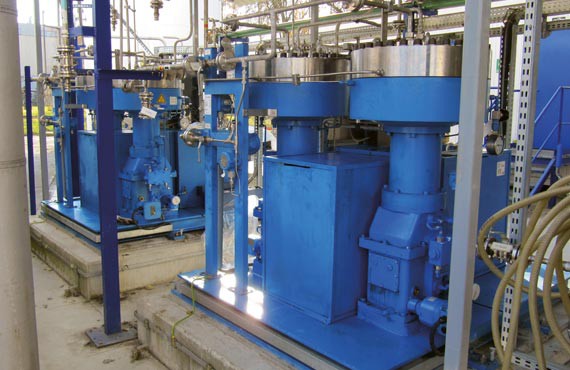

Storage of hydrogen

Metal diaphragm compressor - vertical, 1-stage, duplex design, water cooled. Pressure 9 bar (a), output pressure 41 bar (a) at a flow rate of 135 Nm3/h.

Test stand for cooling systems of hydrogen filling stations

Piston diaphragm compressor, vertical, 2-stage and water cooled. Inlet pressure 1.0 bar (a), output pressure 15 bar (a) at a flow rate of 100 Nm3/h.

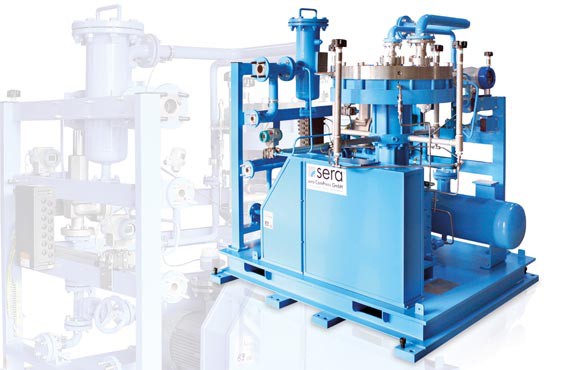

Compressor for oxygen storage

Hydrochlorine diaphragm compressor, vertical, 1-stage and water cooled. Inlet pressure 1.4 bar (a), output pressure 3.5 bar (a) at a flow rate of 28 Nm3/h.

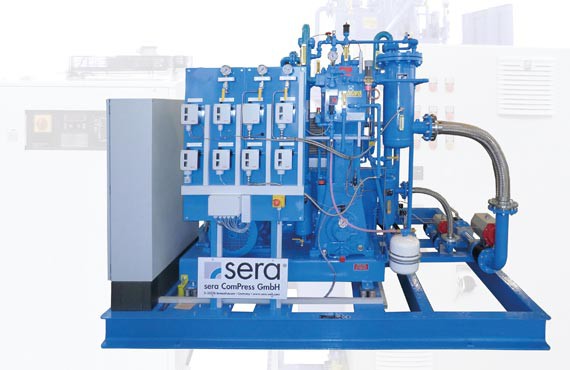

Feeding of helium

Oilfree piston diaphragm compressor, vertical, 2-stage and water cooled. Inlet pressure 1.0 bar (a), output pressure 15 bar (a) at a flow rate of 100 Nm3/h.
