Metal diaphragm compressor for syngas

Kompressor für Synthesegas

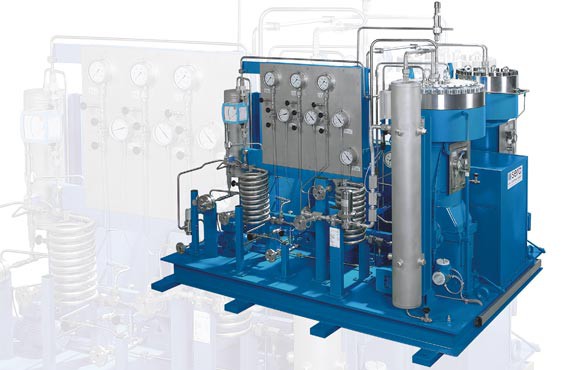

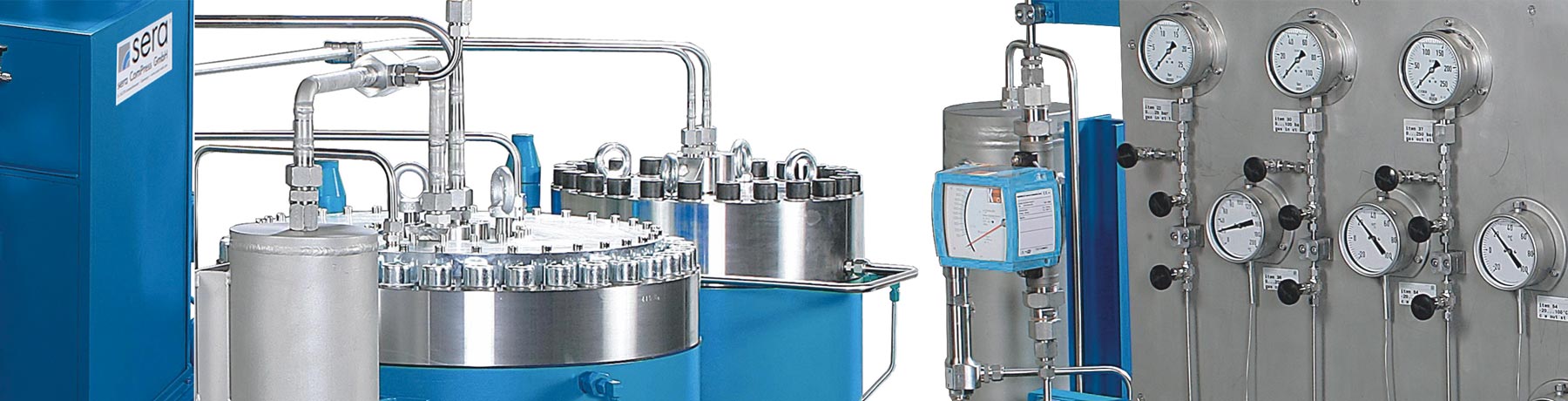

In a petrochemical pilot plant in the Middle East a metal diaphragm compressor type MV 3386 II K for the production
of syngas is used.

The design is vertical, 2-stage and water cooled.

The inlet pressure is 16 bar (g), the output pressure 250 bar (g) at a flow rate of 15 Nm3/h.
