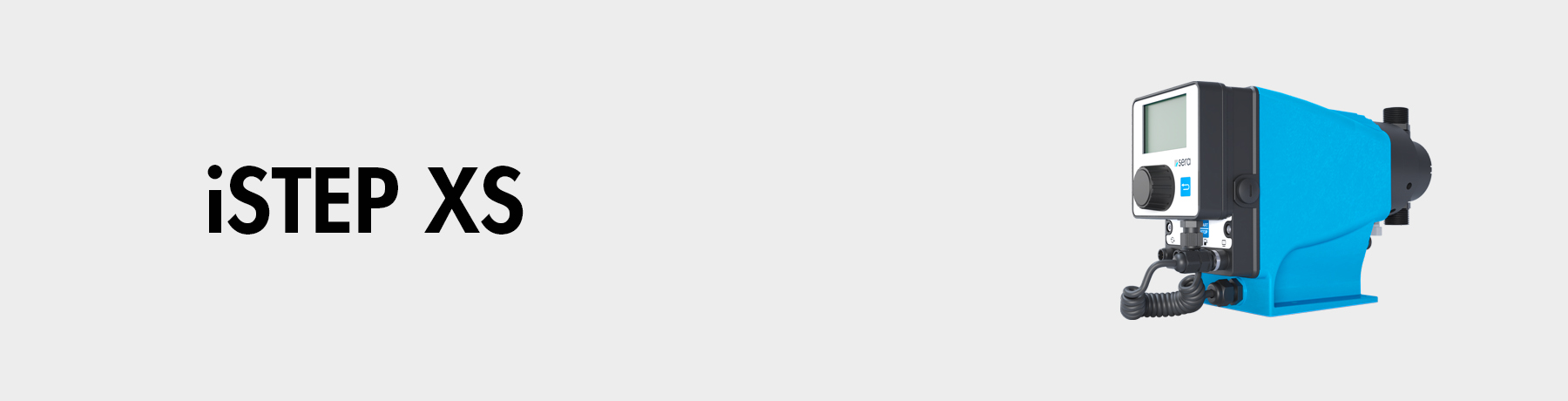

iSTEP XS

STEPPER MOTOR PUMP
FOR DEMANDING METERING REQUIREMENTS

The new iSTEP XS stepper motor pump by sera combines an intelligent drive concept with the accuracy of a diaphragm dosing pump and sets standards with regard to reproducibility and reliability. By means of the variable frequency control and a power range of 0.007..15 l/h at 10..7 bar, the application possibilities are almost unlimited. It is intuitive to use, long lasting and is particularly suitable for demanding dosing tasks.

SCOPE OF APPLICATION

  • Chlorine dosing for the treatment of drinking water

  • Flocculating agent dosing in wastewater treatment

  • Dosing of flocculant aids

  • CIP Use

    INPUTS & OUTPUTS

  • 3 inputs programmable as
    3x digital inputs
    2x analogue inputs 0/4...20mA

  • 2 digital outputs

  • 1 analogue output for 0/4...20mA signal

  • All inputs and outputs can be freely parameterised

OVERVIEW OF ADVANTAGES

  • Extremely high performance range with only one pump
  • Adjustment range 1:1000, thereby optimally adaptable
  • Low-pulsation dosing
  • Microprocessor-controlled drive
  • Remote execution
  • Energy-efficient drive technology

ADDITIONAL FEATURES



Schrittmotorpumpen mit abnehmbarem Handbedienteil

EASY PARADOSING OF SEVERAL PUMPS BY MEANS OF REMOVABLE CONTROL ELEMENT

The iSTEP is operated via the detachable control ele- ment by means of keys and a click-wheel. It ensures the rapid commissioning of several pumps with the same function. The parameterisation of an iSTEP is saved in the control element. Subsequently, the con- trol element can be connected to other pumps and the stored parameters can be transferred. Operation without a control element is also possible, since there is also an additional status LED as well as a start/ stop button directly on the pump.

PROFIBUS- / PROFINET- INTERFACE MODULE (OPTION)

The Pro+ control electronics of the iSTEP can be expanded by interface modules for PROFIBUS or PROFINET networks.

The PROFIBUS INTERFACE MODULE has a level in- put and two connections, with which the iSTEP can be directly integrated into a bus system. The connec- tion / termination directly on the module. Additional distributors are not required.

The PROFINET INTERFACE MODULE offers the possi- bility of integrating the dosing pump into a ProfiNet network. With two ProfiNet connections, it can be integrated in both ring and tree structures.

Profibus und Profinet Interface

Steckeroptionen

APPLICABLE INTERNATIONALLY

The CE and TR certifications are proof of the safe use of the iSTEP in all relevant markets. Individual power plugs (voltage range 100-240V) ensure smooth operation anywhere in the world, and the display is available with nine menu languages (de, en, es, fr, nl, cz, fi, tr, sv), enabling intuitive operation internationally.
