Piston compressors - KV9

The series of the piston compressors KV9 is characterized by a V-construction and the series is are water-cooled.

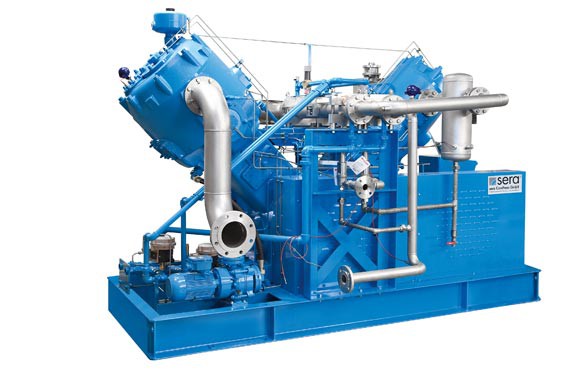

KV 9002 II K, 2-stage, water-cooled

Product charasteristics of piston compressors

  • Oil- and leakage- free compression of nearly all gases with low corrosivity and toxicity
  • Contamination- free separation of power unit and gas- contacted part
  • Continuous monitoring of all relevant operating parameters
  • Crosshead guidance
  • Special sealing systems for use of purge- and buffer gases, as well as nearly loss- free discharge of leakage gas quantity
  • Continuously variable flow rates (speed and/or bypass)
  • ATEX- designs
  • Corrosion- resistant materials
  • Suitable for continuous operation
  • Multi- stage designs (max. 3-stage)
  • Pressures up to 85 bar (depending on type)
  • Flow rates up to 6000 Nm3/h (depending on pressure and gas characteristics)
  • Flow rates up to 50°C (higher gas inlet temperatures possible when using a gas cooler on suction side)
